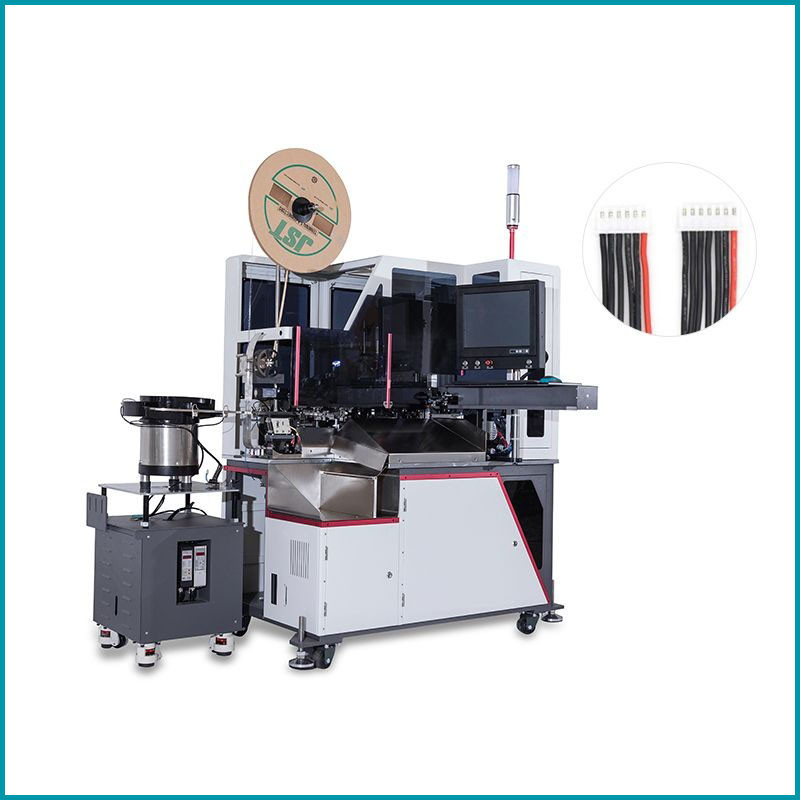

CX-1801 Fully Automatic Wire Twisting Single End Tinning Terminal Housing Connector Inserting Machine

Equipment Function:

Name of the machine	CX-1801auto terminal crimping and housing assembly
Function	A side cutting, stripping, tinning; B side Cutting, full stripping, partial stripping, crimping, housing assembly.
Control Method	computer, windows7, touch screen, mouse, keyboard dural input
Take up system	Computer automatic pre-feeding device, suitable for no-shaft coiling wire + with-shaft coiling wire
Detection Device	CCD visual inspection, With terminal or not, No wires alarm, air pressure detection, housing plug and unplug force detection
Terminal pressure detection system	Optional installation (applicable for domestic and imported systems)
Defective product handling	Sorting (cutting device can be installed)
Adaptable mold	OTP standard horizontal mold, straight mold, flag figure mold
Applicable housing	suitable for multiple pins and different distances of the pin
Crimping force	2T Super Mute terminal crimping machine

Technical Parameter

Voltage	50/60Hz 220V single phase
Cutting Length	25-600mm(＞600mm can be customized)
Applicable cable	AWG#30-AWG#18(Suitable for wires of different specifications and colors )
adaptable terminal	The pitch is 1.25-3.96mm
Capacity	1,100-1,500pcs/hr (subject to actual conditions)
Stripping Length	A side 1-12.5mm; B side 1-7mm
Cutting accuracy	±(0.2%*L+1)mm
Air Pressure	0.5-0.7Mpa(5-7kg/m³)
Dimension	2,3001,2001,370mm take-up 14008001300mm
Weight	about 750kg±15 take-up 150kg

Device Configuration

Motor	15 sets of Mitsubishi motor
Pneumatic Components	34 sets of SMC Cylinder(Air source treatment, flow control, actuator, control valve body all adopt SMC )
Module	4 sets of THK / Hwin linear module
Screw	2 sets TBI
Guide rail	14 sets of THK / Hiwin linear guide
Sensor	Japanese Panasonic
Belt	American Gates Brand
Bearing	Japnese NSK
Blades	t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable
